| MOQ: | 1 |
| giá bán: | có thể đàm phán |
| tiêu chuẩn đóng gói: | hộp gỗ dán |
| Thời gian giao hàng: | 30 ngày |
| Phương thức thanh toán: | T/T |
| khả năng cung cấp: | 1 bộ mỗi tháng |

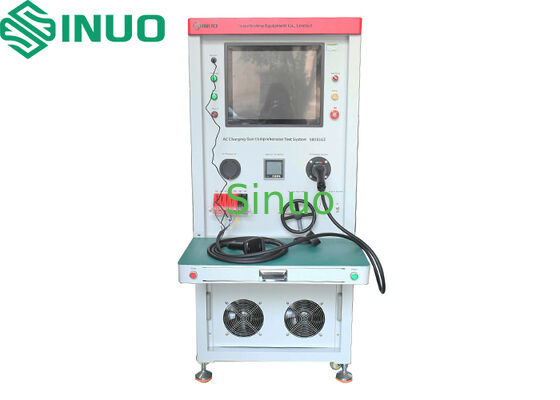

| Parameter | Specification |
|---|---|
| Power Supply | Single-phase AC 220V / 50Hz |
| Air Supply | 0.6 MPa |
| Control System | PLC + Industrial PC |
| Barcode Scanning | Integrated scanner reads barcodes/QR codes on test samples, enabling automatic association with test records for traceability |
| Wire Continuity Tests | Break, continuity, short circuit, and wiring sequence tests via PLC Input/Output scanning with automatic pass/fail determination |
| Built-in Resistance Range | 1 - 5000 Ω, Accuracy: 1% with configurable upper/lower limits |
| CC & PE Resistance | 16A AC plug: Not Pressed RC: 680Ω, Pressed RC+R4: 3.38 kΩ 32A AC plug: Not Pressed RC: 220Ω, Pressed RC+R4: 3.52 kΩ 63A AC plug: Not Pressed RC: 100Ω, Pressed RC+R4: 3.4 kΩ Measurement accuracy: 1%-2% |
| Thermistor Testing Range | 100 - 50,000 Ω, Accuracy: 2% with configurable limits |
| Current Carrying Capacity & Voltage Drop Test | Measures voltage drop across connectors under rated and overload conditions. Built-in three-phase adjustable transformer: 0-380V output, adjustable three-phase load 0-35A. Supported test ranges: 3.3 kW 16A single-phase, 7.4 kW 32A single-phase, 11 kW 16A three-phase, 22 kW 32A three-phase |
| Insulation Resistance Test | Single-phase: L-N, L-E, E-N. Three-phase: L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3. Parameters: Test voltage: DC 100-1000V (adjustable), Lower limit: 1 M-1 GΩ (adjustable), Accuracy: ±5%, Alarm when resistance < set value |
| Dielectric Withstand (Hi-Pot) Test | Single-phase: L-N, L-E, E-N. Three-phase: L1/L2/L3/E-N, L1/L2/L3/N-E, N/L2/L3/E-L1, L1/N/L3/E-L2, L1/L2/N/E-L3. Parameters: Test voltage: AC 0-5 kV / DC 0-6 kV (adjustable), Leakage current limit: AC 0.1-20 mA, DC 0.01-5 mA, Accuracy: ±1.5% + 3 digits, Digital voltage display with programmable adjustment, Alarm if leakage current exceeds set value |
| Test Station | Single station, one product per test |
| Plug Holders | EU AC vehicle plug holder, EU AC pedestal plug holder, GB AC plug holder, US AC plug holder |
| Tail Plate | Special pressing fixture matching the test product, with clamp and protective plate |
| Socket Height | 750 - 1000 mm, ergonomically designed |
| Computer Software | Supports Win 7 and Win 10 with comprehensive parameter configuration. Real-time test result saving for easy access, viewing, and analysis. Communication interfaces reserved for optional MES system connectivity. Test data exportable in TXT or Excel format |
| Dimensions | W 900 × D 800 × H 1800 mm |
| Weight | approx. 300 kg |
| Additional Features | Mobile casters with locking function. MES Connectivity: Optional, additional cost applies |
