IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529

IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529

MOQ: 1
giá bán: Customized
tiêu chuẩn đóng gói: Vỏ ván ép
Thời gian giao hàng: 30 ngày
Phương thức thanh toán: T/t
khả năng cung cấp: 10 bộ mỗi tháng
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
Sinuo
Chứng nhận
Calibration Certificate (Cost Additional)
Số mô hình
SN4410
Kích thước bên ngoài buồng:
Khoảng W 1080* D 1080*H 2300mm (bao gồm cả bánh xe)
Kích thước bên trong buồng:
Chiều dài 1000* W 1000* H1800mm
Max. tối đa. test water depth kiểm tra độ sâu nước:
1,8m
Chiều rộng cửa sổ quan sát:
200mm
cửa sổ quan sát:
Kính cường lực (độ dày: 12mm)
Phương pháp kiểm soát:
Nút (không phải PLC)
Chất liệu buồng trong:
Thép không gỉ dày 2.0mm
Vật liệu buồng bên ngoài:
Inox tấm + Khung nhôm định hình
Mô tả sản phẩm



IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529



Product information:


The IPX7 Waterproof Test Chamber is designed to verify the waterproof performance of electrical and electronic products under immersion conditions. Built according to IEC60529 (IP Code), IEC60884-1, IEC60335-1, and IEC60598-1 standards, this equipment provides reliable testing for product design, R&D, certification, and factory inspections.





Features & Benefits



Durable Construction – Stainless steel inner chamber (2.0 mm thickness) with aluminum profile frame ensures long service life.
Large Immersion Capacity – Test tank supports up to 1.8 m water depth, suitable for a wide range of products.
Clear Observation Window – 12 mm tempered glass window (200 mm width) for real-time monitoring.
Precise Water Control – Manual inlet/drain valve with 1 mm accuracy scale display.
Flexible Test Settings – Programmable test duration from 0.01 s to 99.99 h.
Safe & Convenient Handling – Electric stainless-steel lifting basket with button-control hoist.



Technical Parameters:



Chamber external size

Approximately W 1080* D 1080*H 2300mm (including casters)

Chamber inner size

Length 1000* W 1000* H1800mm

Max. test water depth

1.8m

Observation window

Tempered glass (thickness: 12mm)

Observation window width

200mm

Water level adjustment method

Water inlet / drain valve, manual adjustment

Water level display

Scale (accuracy 1mm)

External chamber material

Stainless steel plates + Aluminum profile frame

Inner chamber material

2.0mm thickness stainless steel

Electric lifting basket

Made of stainless steel, controlled by electric hoist

Control method

Buttons (non-PLC)

Test time

0.01 second-99.99hours can be preset

Immersion depth requirements

The lowest point of enclosure with a height less than 850 mm is located 1000mm below the surface of the water

The highest point of enclosure with a height equal to or greater than 850mm is located 150mm below the surface of the water

Test content

IPX7

Power supply

AC 220V,50Hz, 1KW





Applications and importance


IPX7 testing is a critical step for manufacturers to ensure product safety, quality, and regulatory compliance.
Consumer electronics: Widely used for devices like smartphones, smartwatches, and headphones that are frequently exposed to moisture.
Industrial and automotive: Critical for evaluating components and enclosures used in harsh, wet conditions.
Product safety: Testing helps manufacturers identify weak points in a product's seals and design to prevent malfunction and potential hazards.
Competitive advantage: Achieving an IPX7 rating can be a valuable marketing claim, boosting consumer confidence in the product's durability.

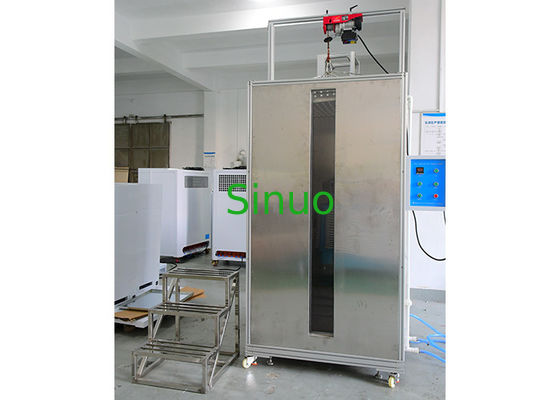

IPX7 Waterproof Test Chamber Immersion Tank Water Resistance Testing Equipment IEC60529 0
