IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench

IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench

MOQ: 1
giá bán: Customized
tiêu chuẩn đóng gói: ván ép
Thời gian giao hàng: 30 ngày
Phương thức thanh toán: T/T
khả năng cung cấp: 10 BỘ MỖI THÁNG
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
Sinuo
Chứng nhận
Calibration Certificate (Cost Additional)
Số mô hình
SN2601
Phạm vi của lực lượng:
Hàng đầu: 0-10KN
Tốc độ của lực lượng:
0,1-50mm/giây
thời gian lực không đổi:
0-9999S
Phương pháp tải:
Điện
phương thức hoạt động:
Điều khiển PLC và màn hình cảm ứng
phạm vi di chuyển:
3 đến 8 bậc tự do
Nguồn cấp:
AC220V/50HZ
kích thước:
W3300*D2000*H2550mm
Làm nổi bật:

IEC61851-1 Electric Vehicle Testing Equipment

,

Conductive Charging Vehicle Testing Equipment

Mô tả sản phẩm



IEC61851-1 EV Conductive Charging System Static Load Test Bench



Product Information For Static Load Test Bench:



Comply with the standards and clauses of EN IEC 61851-1-2019, IEC 61851-1-2017. Used for mechanical strength test of electric vehicle charging piles and similar power supply equipment shells for charging vehicles



Test principle: Drive the electric cylinder through the servo motor to apply a certain force value to the top and side of the sample according to the standard requirements and keep it constant for a certain time to verify its mechanical strength



Structure and features: The machine adopt a frame structure, which is divided into a horizontal loading part and a vertical loading part. Each loading actuator can move freely in the plane with 3 degrees of freedom. The 3 actuators realize the mobile loading with 8 degrees of freedom in total.



Technical Parameters For Static Load Test Bench:



Operation method PLC control and touch screen operation
Drive Servo motor
Test items

1. Static load test on the top (0-10kn)

2. Lateral thrust test (0-1500N), two positions

Loading direction Horizontal 2-way, vertical 1-way (divided into horizontal loading part and vertical loading part. Each loading actuator can move freely in the plane, which is 3 degrees of freedom. 3 actuators achieve 8 degrees of freedom in total mobile loading)
Movable range 3 to 8 degrees of freedom
Loading method Electric
Range of force

Top: 0-10KN

Side: 0-1500N

Speed of force 0.1-50mm/s
Constant force time 0-9999s, can be preset
Power supply AC220V/50Hz
Way of moving Electric steel ball screw + precision linear guide rail adjustment mechanism
Use environment Dimensions: about W3300*D2000*h2550mm. Weight: about 450kg

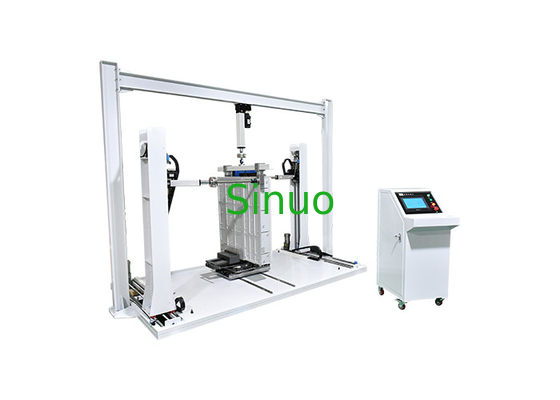

IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench 0



IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench 1



IEC61851-1 EV Testing Equipment Conductive Charging System Static Load Test Bench 2
