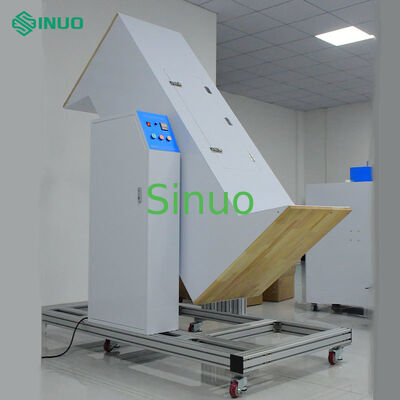

This specialized test apparatus is designed for mechanical strength testing of electric heating pads according to international safety standards.
IEC60335-2-17:2019 "Household and similar electrical appliances - Safety - Part 2-17: Particular requirements for blankets, pads, clothing and similar flexible heating appliances"
Electric heating pad for heating the bed or the human body
Mechanical strength test for drop resistance of electric heating pads. Used to verify the safety of normal use of electric heating pads.
The sample is repeatedly dropped onto a specified surface from a specified height by a motor-driven roller to rotate.
| Workstation | Single workstation, customizable in double-barrel configuration |
|---|---|
| Electrical control method | Key control, touchscreen operation (optional) |
| Drive mode | Motor drive |
| Rolling drum material | Upper and lower base plates: 3mm high-quality steel plates. Upper and lower tops: 19-20mm thick hard wood boards placed inside steel plates. |
| Rotation speed | 5-10 rpm, adjustable |
| Drop count | Rotate and drop twice each time |
| Test (rotation) times | 0-999999 times, adjustable |
| Internal height of rolling drum | 1975mm. Other dimensions according to standard drawing 107 |
| Sample | Electric heating mattress |
