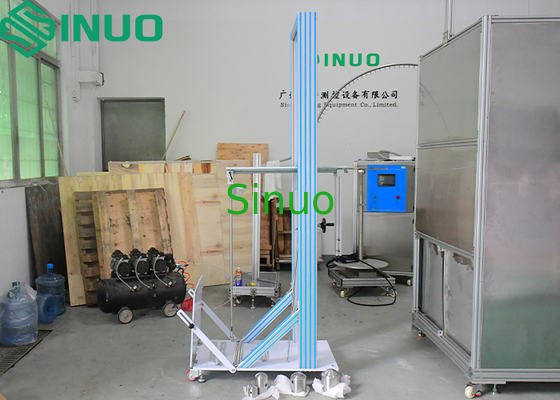

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety

MOQ: 1
giá bán: Customized
tiêu chuẩn đóng gói: Vỏ ván ép
Thời gian giao hàng: 30 ngày
Phương thức thanh toán: T/t
khả năng cung cấp: 10 bộ mỗi tháng
Thông tin chi tiết
Nguồn gốc
Trung Quốc
Hàng hiệu
Sinuo
Chứng nhận
Calibration Certificate(Cost Additional )
Số mô hình
SN2122
Những yếu tố đáng chú ý:
2 J, 5 J, 10 J, 20 J, 50 J (Tùy chọn)
Vật liệu nguyên tố:
Thép chất lượng cao
Phương pháp phát hành:
Phát hành thủ công
Chiều cao rơi:
Có thể điều chỉnh 0 trận500 mm
Mô tả sản phẩm



IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety





Product information:



This impact test apparatus is designed to evaluate the impact resistance and safety performance of household and similar electrical products and their accessories, including plugs, sockets, wall-mounted boxes, screw glands, covers, switches, and luminaires. It ensures compliance with international standards including IEC60068-2-75:2014, IEC60598-1:2017 ,

IEC62262:2002,etc.



Technical Parameters:



Striking Elements (Energy/J)

Optional: 2J (IK07), 5J (IK08), 10J(IK09),20J(IK10), 50J(IK11)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 0

Equivalent Mass

kg

0.5 kg, 1.7 kg, 5 kg, 10 kg (supports various hammer heads)

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 1

Striking Elements Material Steel
Pendulum Tube Length 1000㎜,outer diameter 10mm and 15.9 mm, wall thickness 1.5 mm steel pipe
Impact Point Stroke: 200-1200mm, up and down adjustable by rotating the handwheel manually
Height of Fall IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 2
Striking Element Fix and Release Mechanical latch fixation and manual release
Way of moving Equipped with casters for easy movement and positioning

IK07-IK11High Energy Pendulum Impact Tester For Electrical Safety 3
